产品展示

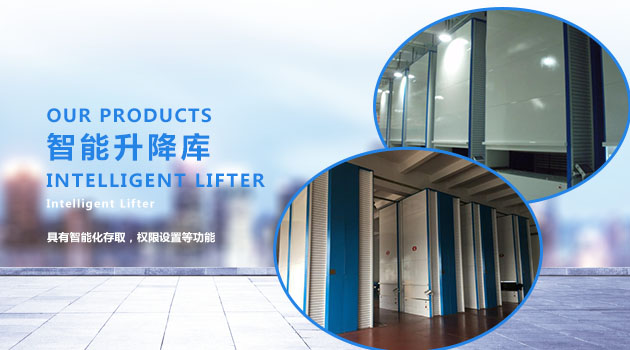

智能升降库   Intelligent Lifter

工作原理  Working principle

智能升降库是以托盘为存储单元，通过提取器的升降运动，将存放货物的托盘取出到操作者的面前或者送到库内合适的货格里。在送货物的过程中，通过入口处自动测高装置，检测所存物品的高度，以便快捷的将物料存放于库内******位置，自动、合理的安排库体内部有效的存储空间。该设备采用PLC控制技术，自动检测装置，具有智能化存取，权限设置等功能。

The intelligent lifter is a storage unit with pallets. Through the lifting movement of the extractor, the pallets that store the goods are removed to the operator's front or to the appropriate container in the library. In the process of delivering the goods, the height of the stored items is detected by the automatic height measuring device at the entrance, so that the material is stored in the best position of the library quickly, and the effective storage space inside the library is automatically and reasonably arranged. The device uses PLC control technology, automatic detection device, with intelligent access, authorization settings and other functions.



优特点：Excellent characteristics



        四轮定位系统

 四根链条悬挂系统



          高精度认址系统

 自动测高系统，合理安排存储空间



 可穿越楼层，高度达20米



 高承载力，整机可达60吨

智能升降库   Intelligent Lifter

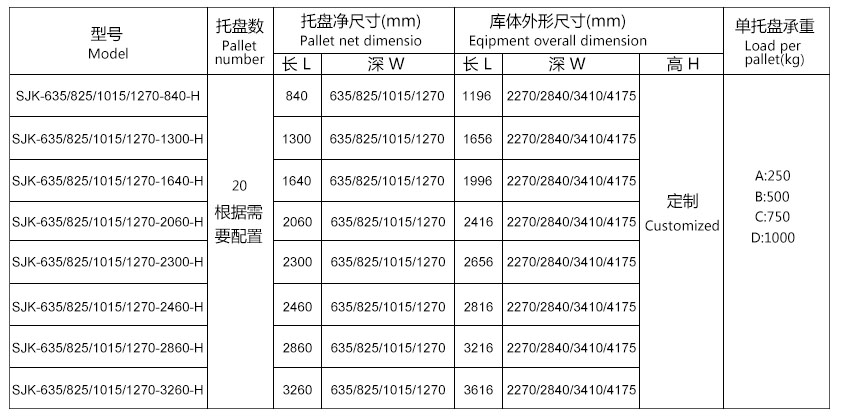

技术参数（Technical parameter）：

多元化托盘结构   Diversified pallet structure





手动拖出支架



 托盘周转小车

自动拖出系统

客户案例及应用行业



中国航天五院某研究所8台，国内首例14米高无人化仓库
